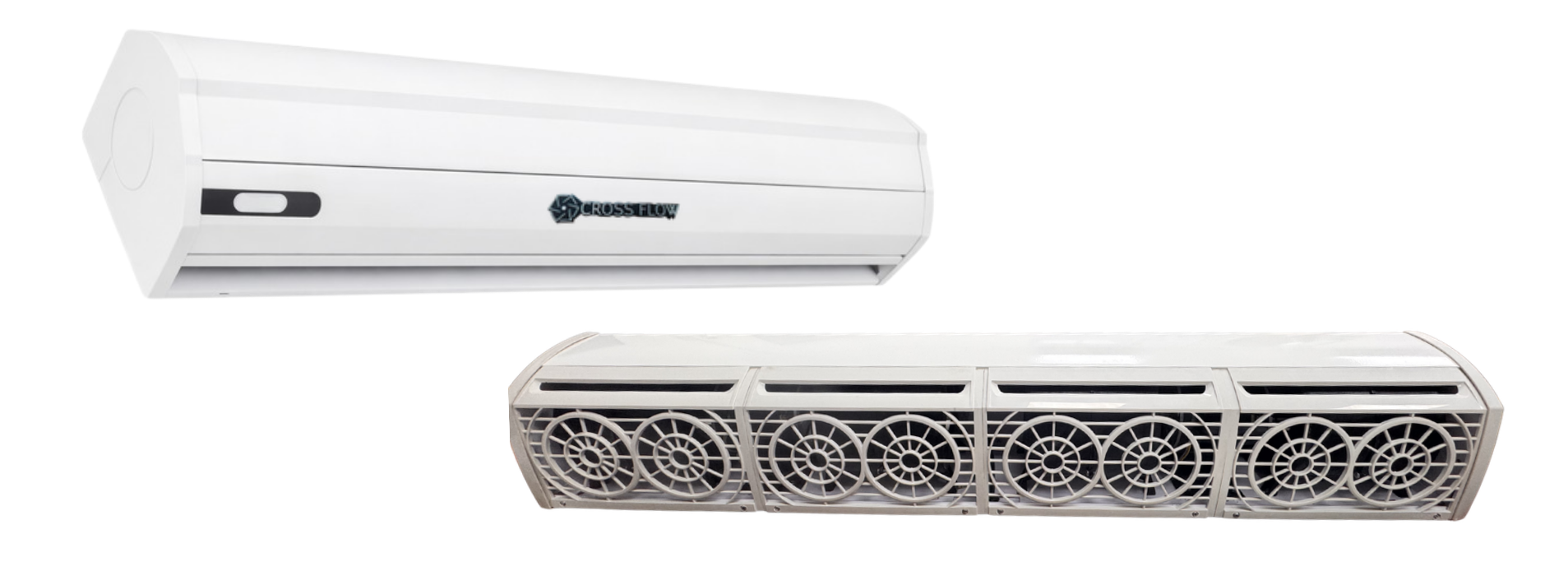

Centrifugal Type Air Curtain
Fashion Wind Air Curtain
The regular distance wheel and ultra quiet wind wheel can produce a powerful air flow. It is made of high-tech ABS.
Motor
It adopts the technology of electrical machinery. It runs smoothly.
With powerful air-flow it operates reliably and runs safely for 5,000 consecutive hours.
Air inlet from top design. with high air pressure and adjustable air direction. Available with remote control and key switch.
Metal casing, unique shape, easy installation.
Available multiple unit specifications: 600mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm & 2000mm.
Technical Specification
| Model | Dimension (MM) | Frequency (Hz) | Voltage (~V) | Input Power (W) | Air Volume (M³/H) | Air Velocity (M/S) | Noise (dB) |
| FW-2006 | 600 × 215 × 230 | 50 | 230 | 330 | 1100 | 18-21 | <55 |
| FW-2009 | 900 × 215 × 230 | 50 | 230 | 470 | 1400 | 18–21 | <55 |
| FW-2010 | 1000 × 215 × 230 | 50 | 230 | 470 | 1500 | 18–21 | <56 |
| FW-2012 | 1200 × 215 × 230 | 50 | 230 | 640 | 1900 | 18–21 | <57 |
| FW-2015 | 1500 × 215 × 230 | 50 | 230 | 780 | 2300 | 18–21 | <58 |
| FW-2018 | 1800 × 215 × 230 | 50 | 230 | 970 | 2650 | 18–21 | <59 |
| FW-2020 | 2000 × 215 × 230 | 50 | 230 | 1270 | 3000 | 18–21 | <62 |
