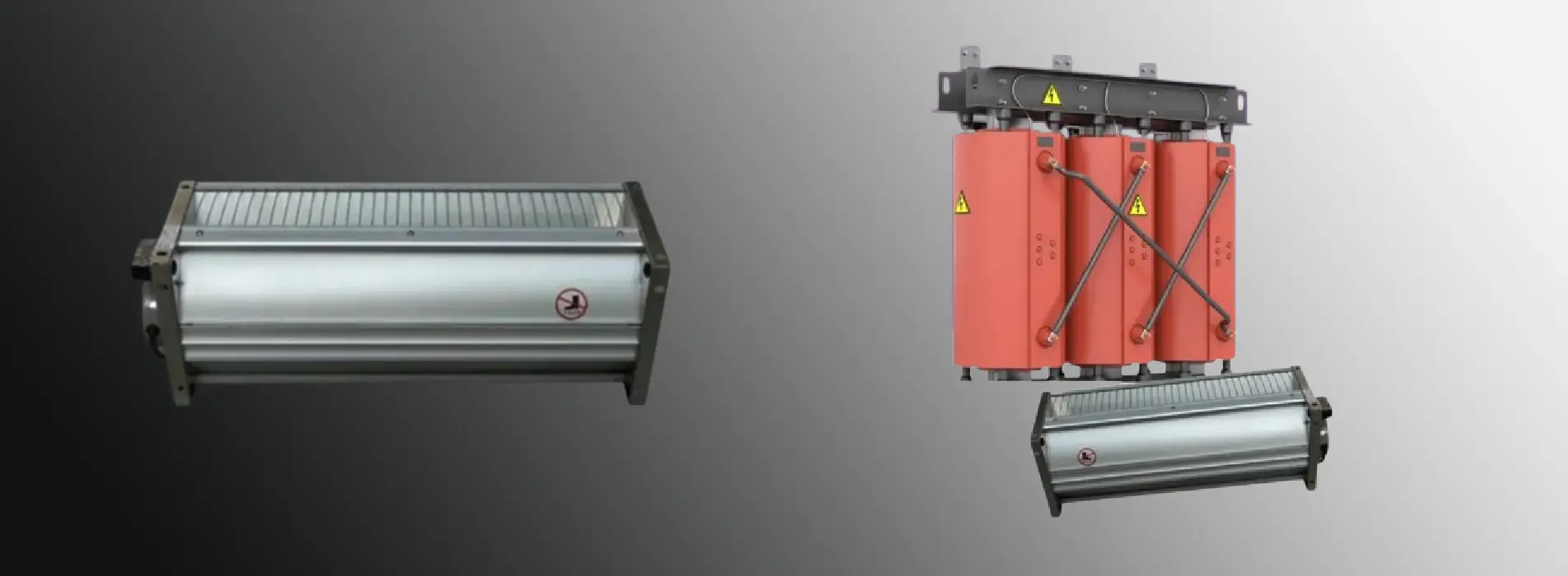

Dry Transformer Cooling Fan
Dry Transformer Fan
Dry Transformer Fan Side blowing shape and installation dimensions
Dry Transformer Fan Side blowing shape and installation dimensions
| No. | Model | L | L1 | L2 | L3 | L4 | A | A1 | B | Hole Size |
| 01 | CFI – TF – 365 – 150 | 365 | 325 | 305 | 341 | 172 | 190 | 162 | 200 | 4-Ф7*10 |
| 02 | CFI – TF – 470 – 150 | 470 | 430 | 410 | 446 | 172 | 190 | 162 | 200 | 4-Ф7*10 |
| 03 | CFI – TF – 490 – 150 | 490 | 450 | 430 | 466 | 172 | 190 | 162 | 200 | 4-Ф7*10 |
| 04 | CFI – TF – 590 – 150 | 590 | 550 | 530 | 566 | 172 | 190 | 162 | 200 | 4-Ф7*10 |
| 05 | CFI – TF – 690 – 150 | 690 | 650 | 630 | 666 | 172 | 190 | 162 | 200 | 4-Ф7*10 |
| 06 | CFI – TF – 770 – 150 | 770 | 730 | 710 | 746 | 172 | 190 | 162 | 200 | 4-Ф7*10 |
| No. | Model | Motor Rated Parameters | Air Flow (m³/h) | Noise dB (A) | Air Pressure (Pa) | Dry Transformer Capacity (KVA) | Set Of Transformer | ||
|---|---|---|---|---|---|---|---|---|---|
| Voltage/ Frequency (V/Hz) | Rotation Speed (r/min) | Power (W) | |||||||
| 01 | CFI – TF – 365 – 150 | 220/50 | 1380 | 95 | 1025 | 55 | 30 | 630 – 1100 | 6 |
| 02 | CFI – TF – 470 – 150 | 220/50 | 1380 | 110 | 1300 | 57 | 30 | 800 – 1600 | 6 |
| 03 | CFI – TF – 490 – 150 | 220/50 | 1380 | 115 | 1375 | 57 | 30 | 1600 – 2000 | 6 |
| 04 | CFI – TF – 590 – 150 | 220/50 | 1380 | 145 | 1550 | 57 | 30 | 2000 – 2500 | 6 |
| 05 | CFI – TF – 690 – 150 | 220/50 | 1380 | 190 | 1700 | 59 | 30 | 2500 – 3150 | 6 |
| 06 | CFI – TF – 770 – 150 | 220/50 | 1380 | 220 | 1800 | 59 | 30 | 3150 – 5000 | 6 |
