Cross flow Type Air Curtains

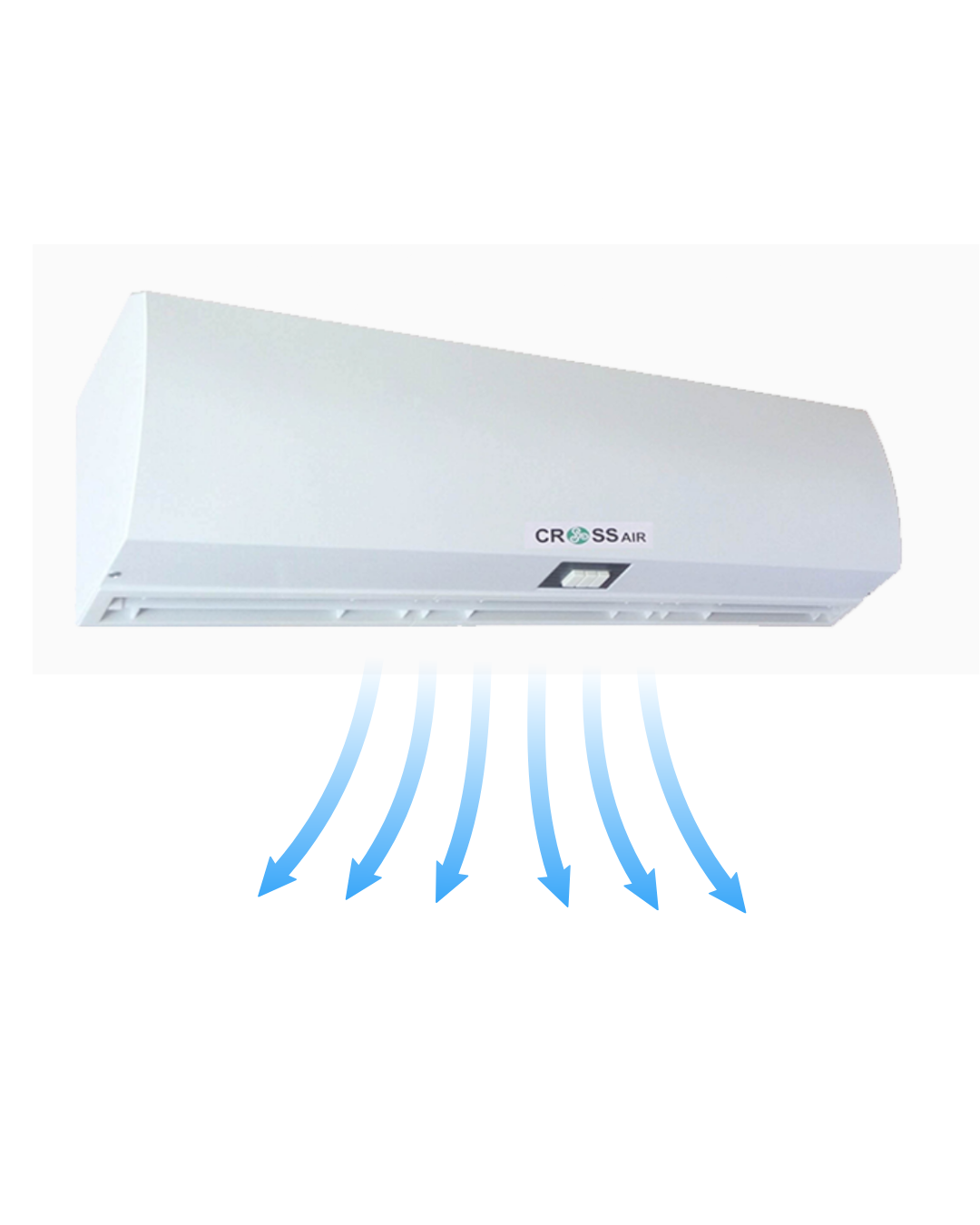

Cross World Wind Wide Flow Air Curtain
Cross World Wind Wide Flow Series Air Curtains stainless cover of the AIR CURTAINS is made of G.I / CRC Powder Coated designed as Arc and ultra-thin, adapt to glass door. The Motor is designed to suit high ambient. The Plastic Cross Flow Fan wheel is ultrasonically welded and dynamically balanced to give aerodynamic airflow.
Fan wheel
The uniquely designed air flue with wind wheel technology, made from high-precision ABS material, ensures high-speed performance with stable balance and low-noise operation.

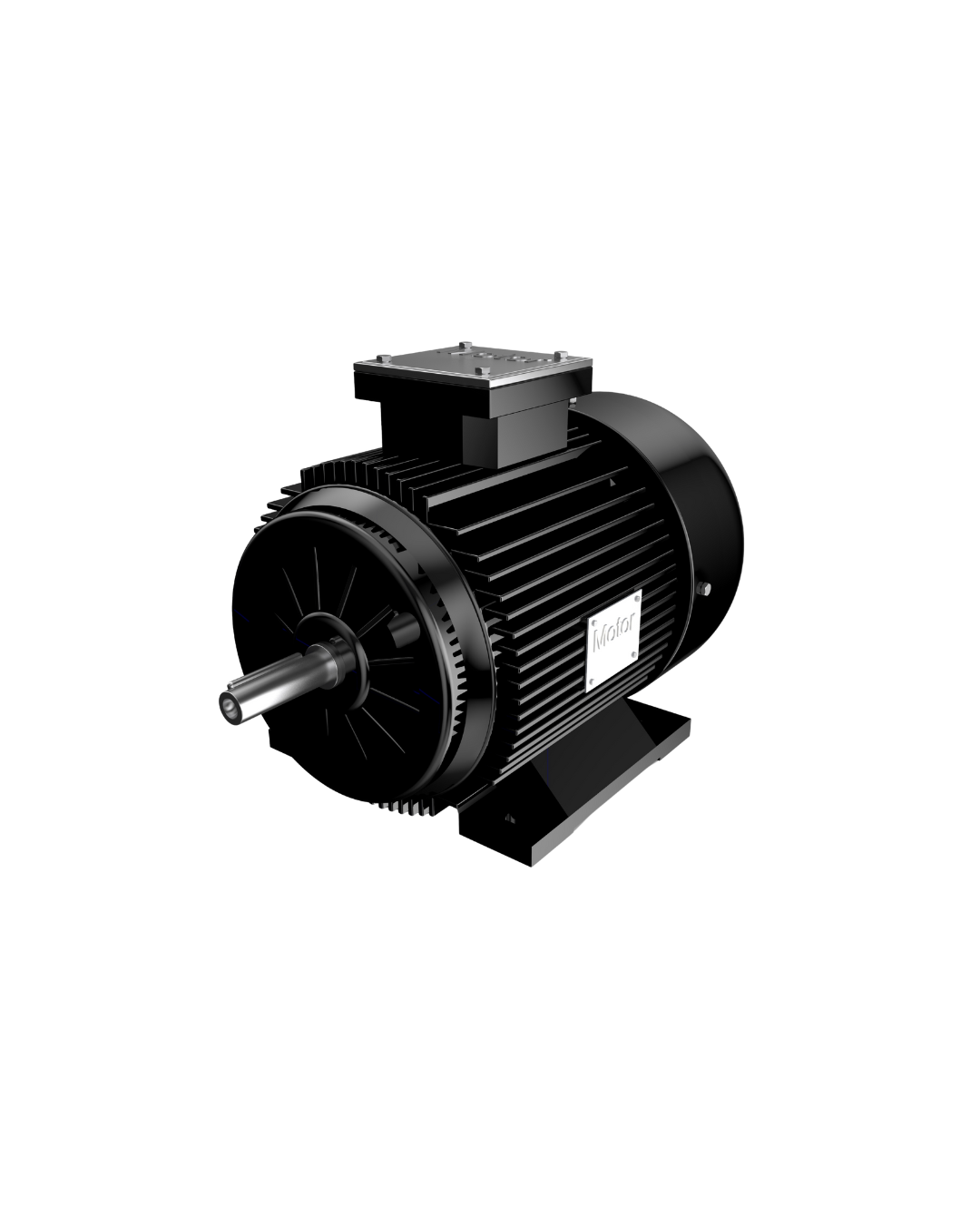

Motor
Its adopt the technology of electrical machinery its runs smoothly with powerful air-flow it operates reliabl and runs safely for 5000 Consecutive hours.
Comfort system
Maintaining a constant internal environment, a comfortable temperature is ensured whilst the air is kept fresh.
Clean Air Flow
Provide clean air flow by creating an invisible barrier that prevents dust, insects, and outdoor pollutants from entering.
SPECIFICATION
| Model | Dimension | Voltage Frequency | Dia of wheel (mm) | Input Power (W) | Air Velocity (m/s) | Noise (db) | Net weight (kg) | Gross Weight |
| CF -1509-14 | 900X230X270 | 200V 50HZ | 154 | 300 | 14 | 62 | 20 | 23 |
| CI-1510-14 | 1000X230X270 | 220V 50HZ | 154 | 350 | 14 | 63 | 22 | 25 |
| CI-1512-14 | 1200X230X270 | 220V 50HZ | 154 | 450 | 14 | 65 | 24 | 28 |
| CI1515-14 | 1500X260X225 | 220V 50HZ | 154 | 690 | 14 | 68 | 28 | 33 |
| CI-1518-14 | 1800X230X270 | 220V 50HZ | 154 | 800 | 14 | 71 | 34 | 39 |
NOTE:- AIR CURTAIN SENSOR AVAILABLE
