Dry Transformer Cooling Fan
Dry Transformer Fan

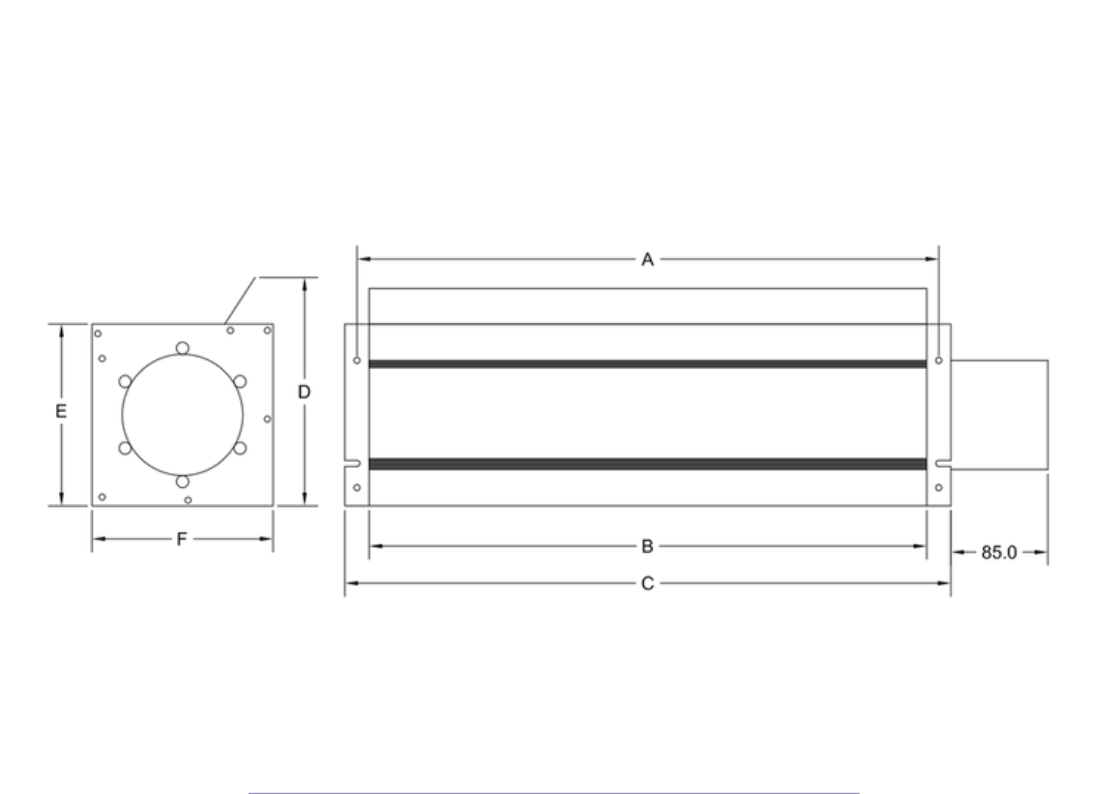

Dry Transformer Fan Side blowing shape and installation dimensions
Dry Transformer Fan Side blowing shape and installation dimensions
| No. | Model | A | B | C | D | E | F |
| 01 | CF – TFEG – 180 | 213.5 | 196 | 228 | 156 | 127.51 | 130.2 |
| 02 | CF – TFEG – 300 | 394 | 376 | 408 | 156 | 127.51 | 130.2 |
| 03 | CF – TFEG – 500 | 533.5 | 516 | 547.5 | 156 | 127.5 | 130.2 |
| No. | Model | Motor Rated Parameters | Air Flow (m³/h) | Noise dB (A) | CURRENT (mA) | ||
|---|---|---|---|---|---|---|---|
| Voltage/ Frequency (V/Hz) | Rotation Speed (r/min) | Power (W) | |||||
| 01 | CF – TFEG – 180 | 220/50 | 2700 | 75 | 475 | 70 | 0.326 |
| 02 | CF – TFEG – 360 | 220/50 | 2600 | 84 | 810 | 73 | 0.413 |
| 03 | CF – TFEG – 500 | 220/50 | 2470 | 118 | 980 | 74 | 0.550 |
