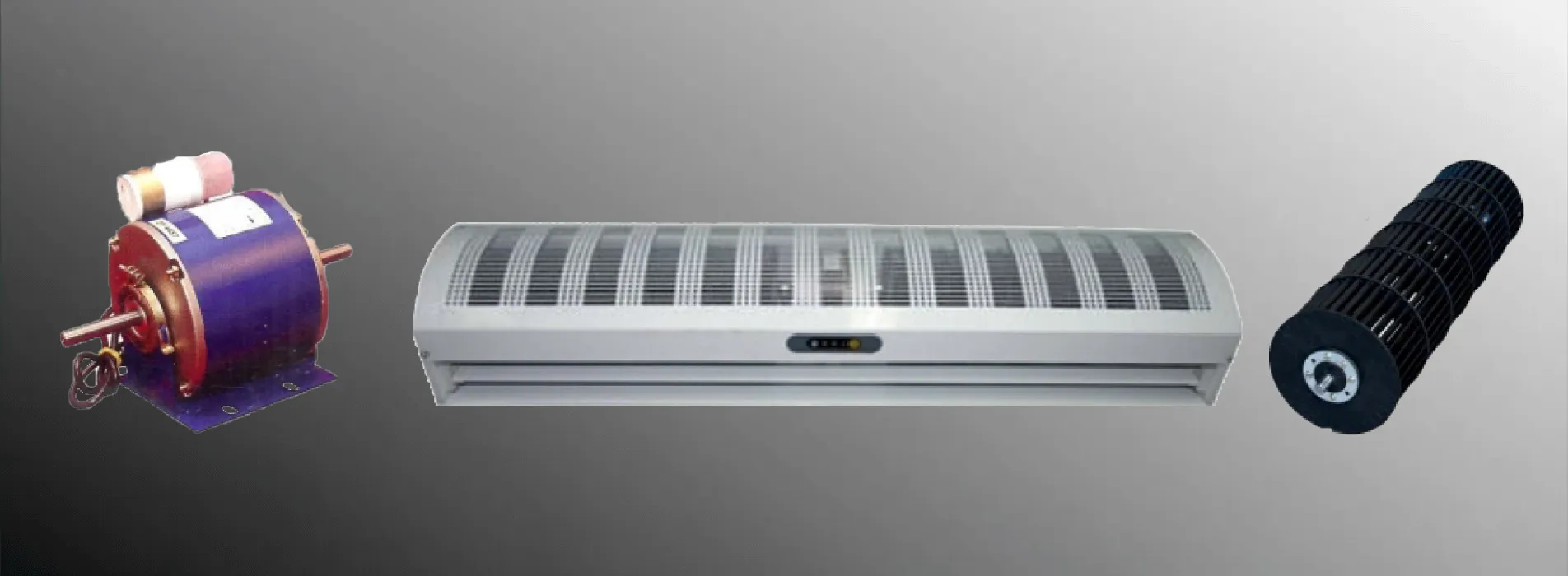

Cross Flow / Tangential Type Air Curtain
Tangential Type Air Curtain
Fitted With
Crompton Greaves
Copper Motor
Large Wind Air Curtain Strong Wind and Efficient Barrier
Motor
ts adopt the technology of electrical machinery its runs smoothly with powerful air-flow it operates reliably. And runs safely for 5000 Consecutive hours.
Fan Wheel
The unique birthplace flows the wind wheel air flue design, Uses the high accuracy ABS manufacture: can the high speed transient equilibrium low noice revolution.
Comfort System
Maintaining a constant internal environment, a comfortable temperature is ensured whilst the air is kept fresh.
Available In Single & Three Phase
| Model | Dimension (MM) | Frequency (Hz) | Voltage (~V) | Input Power (W) | Air Volume (M³/H) | Air Velocity (M/S) | Noise (dB) |
|---|---|---|---|---|---|---|---|
| CFI-1706 | 600 × 220 × 240 | 50 | 230 / 415 | 330 | 1400 | 15–17 | <55 |
| CFI-1709 | 900 × 220 × 240 | 50 | 230 / 415 | 410 | 2100 | 15–17 | <55 |
| CFI-1710 | 1000 × 220 × 240 | 50 | 230 / 415 | 410 | 2400 | 15–17 | <56 |
| CFI-1712 | 1200 × 220 × 240 | 50 | 230 / 415 | 490 | 2900 | 15–17 | <57 |
| CFI-1715 | 1500 × 220 × 240 | 50 | 230 / 415 | 610 | 3600 | 15–17 | <58 |
| CFI-1718 | 1800 × 220 × 240 | 50 | 230 / 415 | 860 | 4400 | 15–17 | <59 |
| CFI-1720 | 2000 × 220 × 240 | 50 | 230 / 415 | 1030 | 5000 | 15–17 | <62 |
