Cross Flow / Tangential Type Air Curtain
Centrifugal Type Air Curtain
India’s First

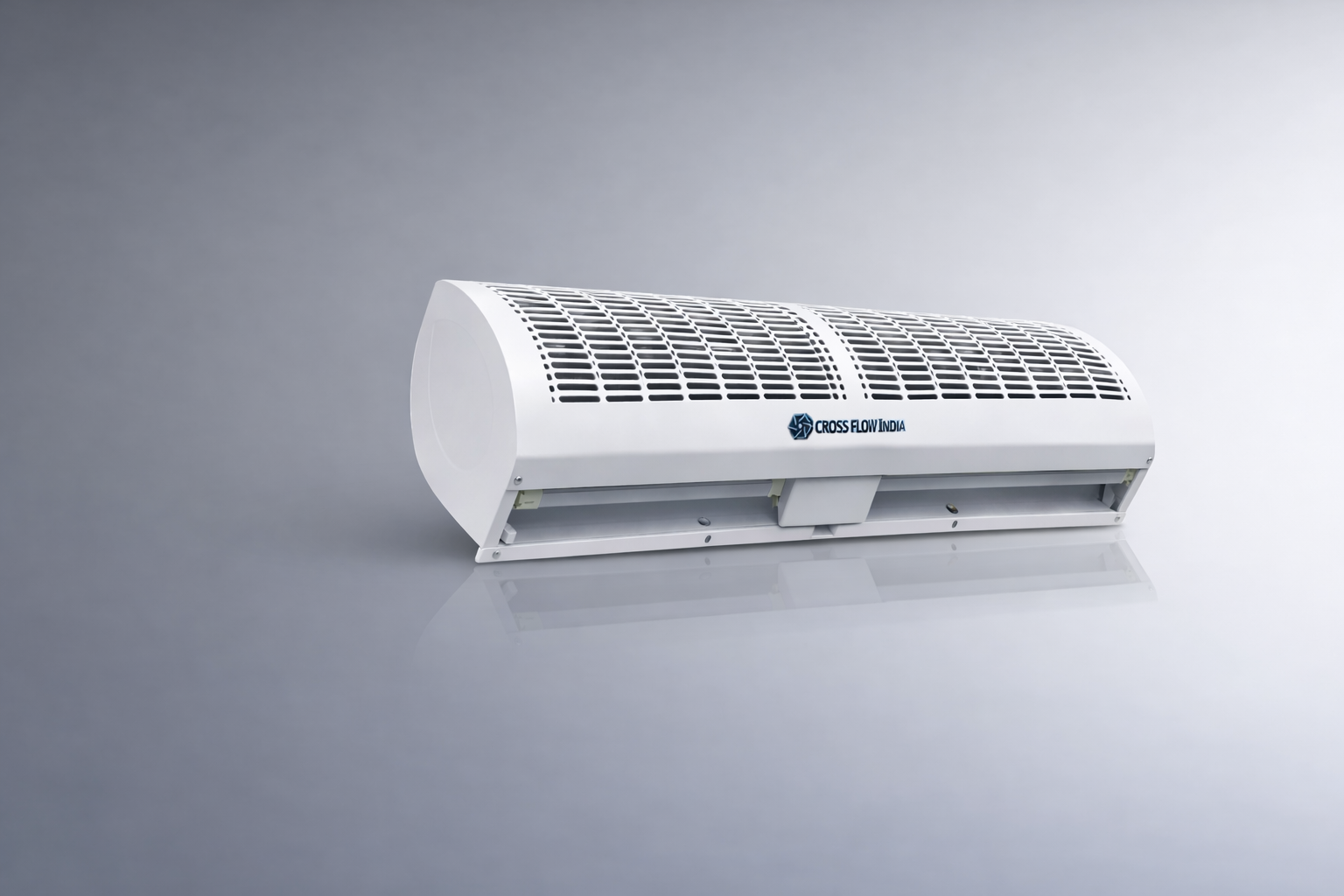

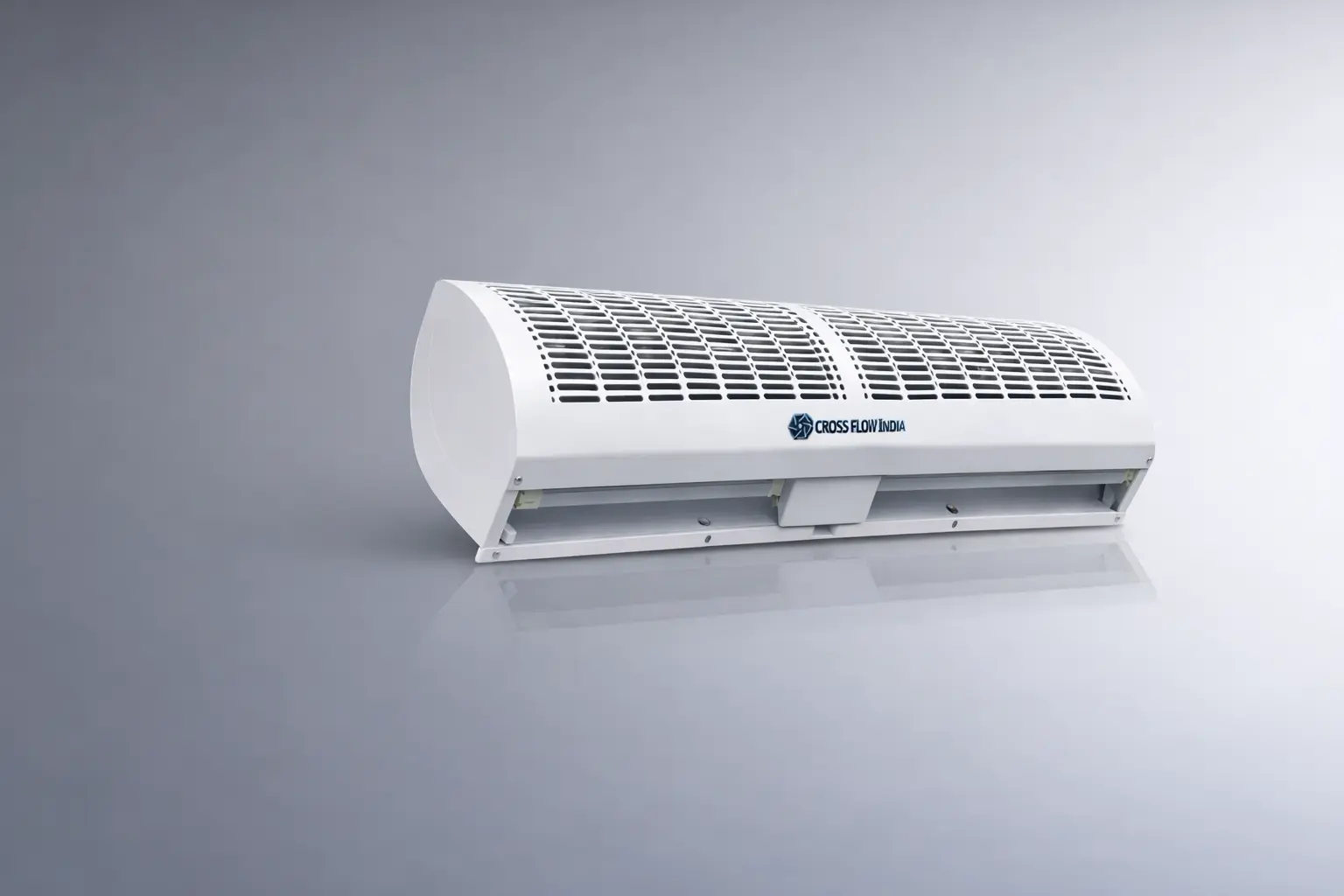

Ultra-Sleek Wide Flow Air Curtain
Save 35% Electricity
Through-Flow Integrated Low Noise Fan
Circulating Cross-flow Air Duct,
Wind Wheel Bearing Integrally Formed, Made Of Glass Fiber Material.
Non-equidistant Wind Wheel Structure, Uniform Air Output And Stable Operation.
Enhanced Wind And Reduced Operationg Noise.
Technical Specification
| Model | Dimension (MM) | Frequency (Hz) | Voltage (~V) | Input Power (W) | Air Volume (M3/H) | Air Velocity (M/S) | Noise |
| SLV-60 | $600\times 200\times 160$ | 50 | 230 | 350 | 1600 | 17-18 | $<49$ |
| SLV-90 | $900\times 200\times 160$ | 50 | 230 | 425 | 1800 | 17-18 | $<52$ |
| SLV-100 | $1000\times 200\times 160$ | 50 | 230 | 435 | 1900 | 17-18 | $<52$ |
| SLV-120 | $1200\times 200\times 160$ | 50 | 230 | 535 | 2522 | 17-18 | $<53$ |
| SLV-150 | $1500\times 200\times 160$ | 50 | 230 | 630 | 3031 | 17-18 | $<55$ |
| SLV-180 | $1800\times 200\times 160$ | 50 | 230 | 710 | 3536 | 17-18 | $<57$ |
