Centrifugal Type Air Curtain
Centrifugal Type Air Curtain

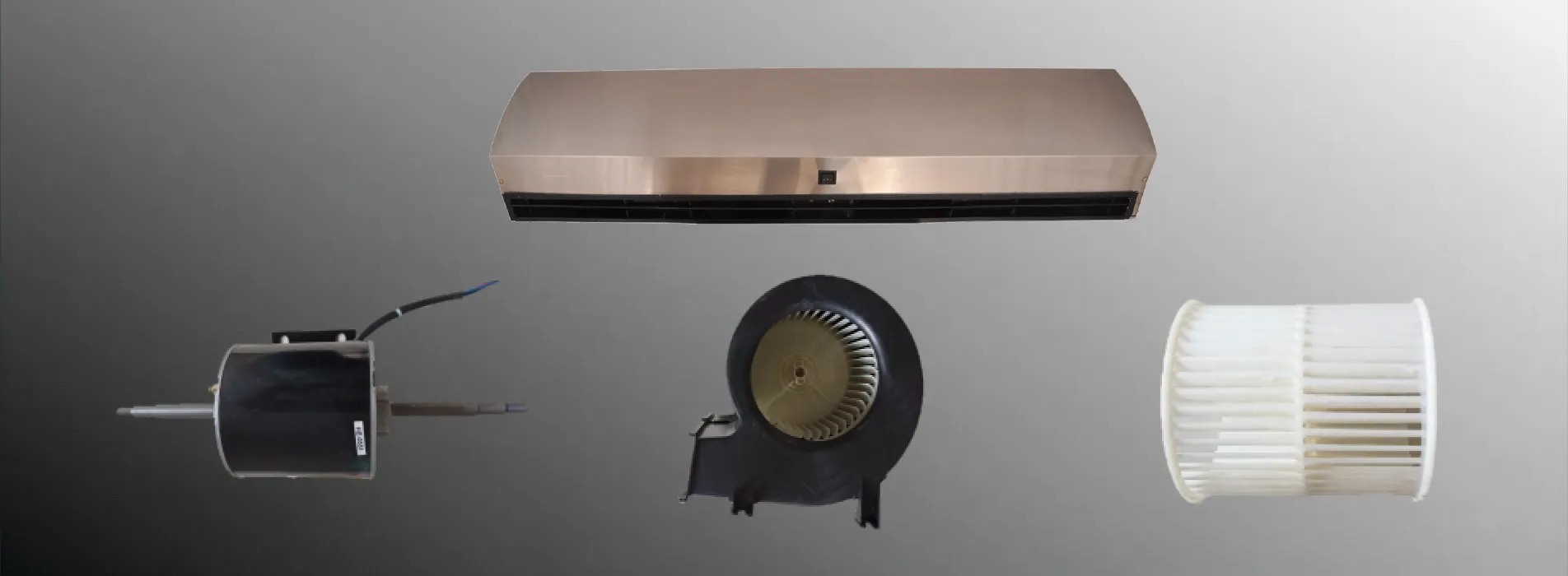

Fan Wheel
The Regular Distances Wheel And Ultra Quite Wind Wheel Can Produce The Powerful Air-flow. It Is Made Of High Tech Abs.
Motor
It adopts the technology of electrical machinery. It runs smoothly with powerful air-flow it operates reliably. And runs safely for 5,000 consecutive hours.
Stainless Steel Air Curtain Is Made Of 304 Food-Grade S.S Sheets Designed As Arc And Ultra-thin, Unique Shape, Easy Installation.
Available Multiple Unit Specifications: 600mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm & 2400mm.
Technical Specification
| Model | Dimension (MM) | Frequency (Hz) | Voltage (~V) | Input Power (W) | Air Volume (M³/H) | Air Velocity (M/S) | Noise (dB) |
|---|---|---|---|---|---|---|---|
| SS-2006 | 600 × 230 × 212 | 50 | 230 | 330 | 1100 | 18–21 | <55 |
| SS-2009 | 900 × 230 × 212 | 50 | 230 | 470 | 1400 | 18–21 | <55 |
| SS-2010 | 1000 × 230 × 212 | 50 | 230 | 470 | 1500 | 18–21 | <56 |
| SS-2012 | 1200 × 230 × 212 | 50 | 230 | 640 | 1900 | 18–21 | <57 |
| SS-2015 | 1500 × 230 × 212 | 50 | 230 | 780 | 2300 | 18–21 | <58 |
| SS-2018 | 1800 × 230 × 212 | 50 | 230 | 970 | 2650 | 18–21 | <59 |
| SS-2020 | 2000 × 230 × 212 | 50 | 230 | 1270 | 3000 | 18–21 | <62 |
