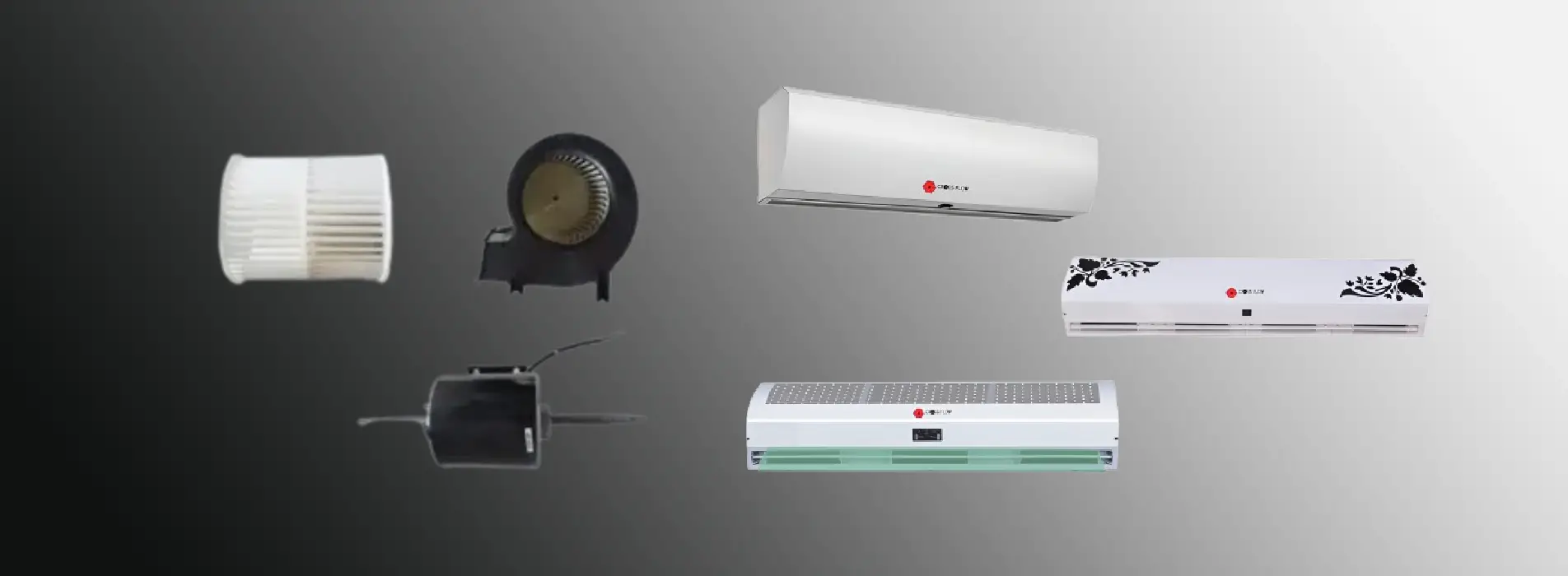

Centrifugal Type Air Curtain
Centrifugal Type Air Curtain
Fan Wheel
The regular distance wheel and ultra quiet wind wheel can produce a powerful air flow. It is made of high-tech ABS.
Motor
It adopts the technology of electrical machinery. It runs smoothly.
With powerful air-flow it operates reliably and runs safely for 5,000 consecutive hours.
Metal casing, unique shape, easy installation.
Available multiple unit specifications: 600mm, 900mm, 1000mm, 1200mm, 1500mm, 1800mm, 2000mm & 2400mm.
Technical Specification
| Model | Dimension (MM) | Frequency (Hz) | Voltage (~V) | Input Power (W) | Air Volume (M³/H) | Air Velocity (M/S) | Noise (dB) |
| AMT-2006 | 600 × 230 × 212 | 50 | 230 | 330 | 1100 | 18–21 | <55 |
| AMT-2009 | 900 × 230 × 212 | 50 | 230 | 470 | 1400 | 18–21 | <55 |
| AMT-2010 | 1000 × 230 × 212 | 50 | 230 | 470 | 1500 | 18–21 | <56 |
| AMT-2012 | 1200 × 230 × 212 | 50 | 230 | 640 | 1900 | 18–21 | <57 |
| AMT-2015 | 1500 × 230 × 212 | 50 | 230 | 780 | 2300 | 18–21 | <58 |
| AMT-2018 | 1800 × 230 × 212 | 50 | 230 | 970 | 2650 | 18–21 | <59 |
| AMT-2020 | 2000 × 230 × 212 | 50 | 230 | 1270 | 3000 | 18–21 | <62 |
